#46
Steviep

Posted 16 May 2024 - 10:54 AM

Member

Topic Starter
Member
420 posts

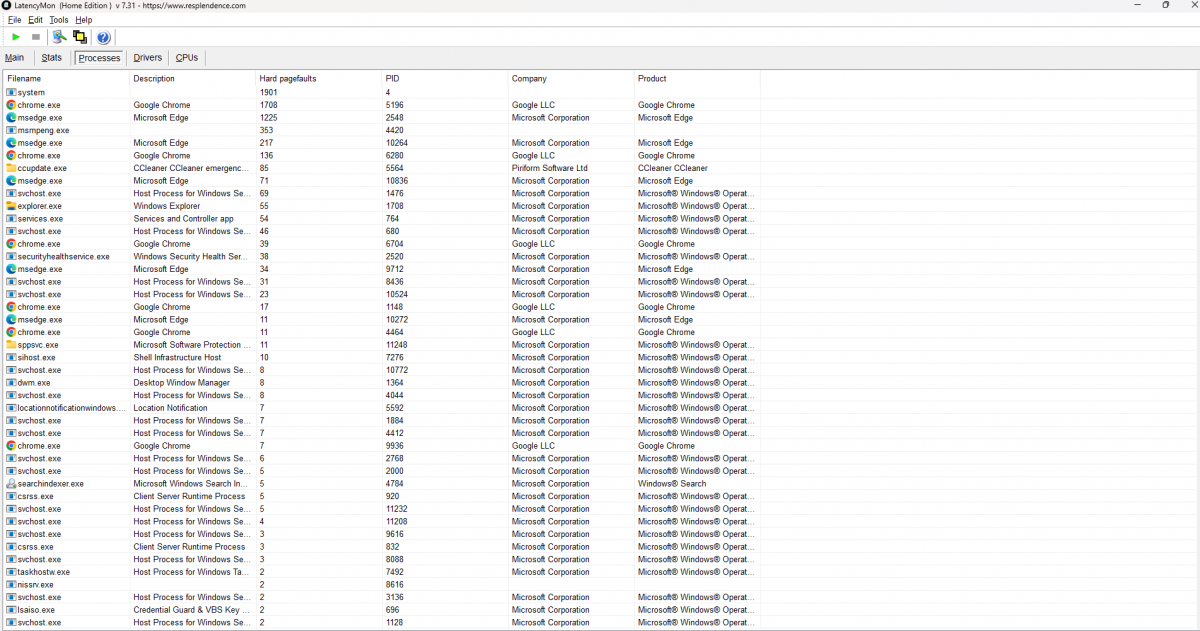

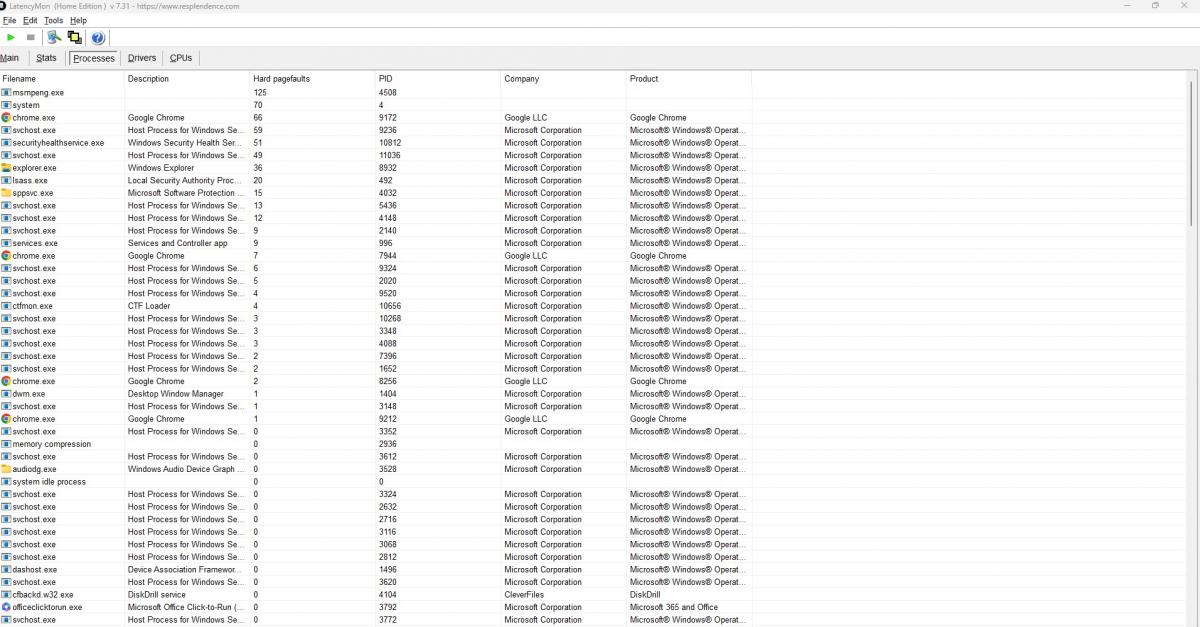

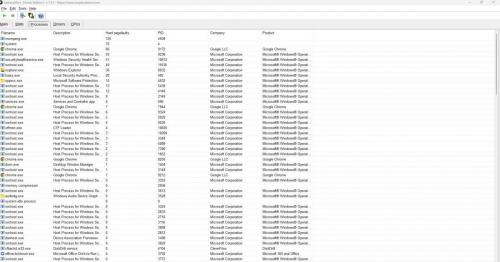

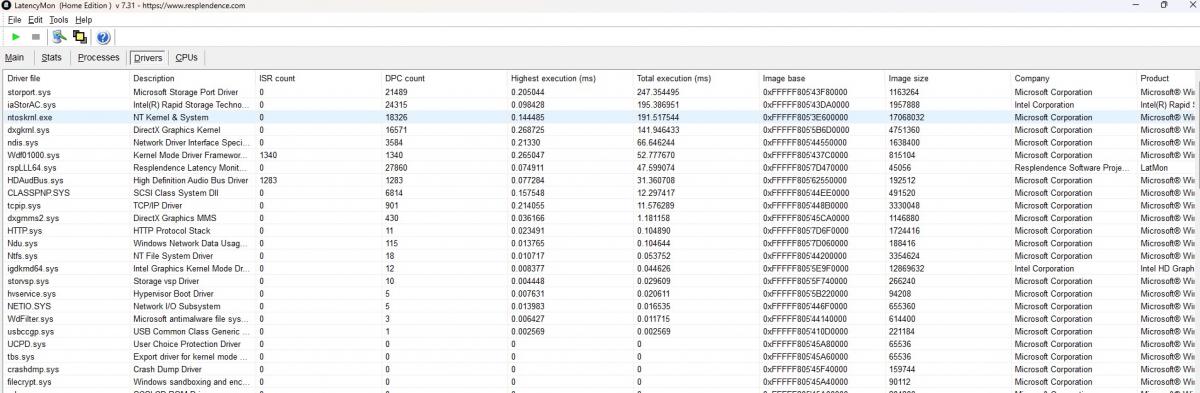

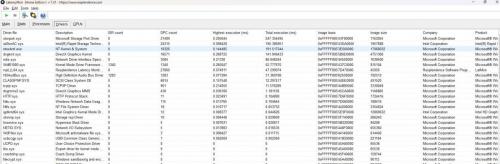

Theses were the screen shots for Drivers and Processes.

I've increased the Virtual Memory to 16000 and ran the memory diagnostics which said did not find any errors but didnt produce the report when restarted.

Since I changed the virtual memory start up appears faster at 4 mins from switch on to search results delivered

Attached Thumbnails

#47
RKinner

Posted 16 May 2024 - 02:46 PM

Malware Expert

Expert
24,731 posts

CCleaner is part of the problem so uninstall it. We certainly don't need it.

Let's see if we can keep Edge from running. since you are using Chrome.

Start Edge and click on the dots in the upper right. Select Settings:

Click on System and Performance. Turn off the first two options:

Startup boost

Continue running background extensions and apps when Microsoft Edge is closed

(Make the blue go away)

Click on Open your computer's proxy settings

This opens a separate Settings window.

There are three blue options on this page. Turn them off.

Close Settings

Now click on Privacy, search, and services

Search and service improvement should be OFF (not blue)

Scroll down to the bottom and hit the arrow to the right of

Address bar and search

click on

Manage search engines

Click on the three dots to the right of each Search Engine that you Do Not use and click on Remove. (You can't remove Bing but you can make Google or your favorite search engine the Default.

Don't touch Favorites, History or Tabs.

Close Edge.

Now Search for

task scheduler

and hit Enter

In the center pane you should find two MicrosoftEdge (may look like MicrosoftEd) tasks. Right click on each and select Disable.

These say they update Edge so if you ever decide to use Edge you should probably turn them back to Enable.

If you don't use One Drive to store stuff in the cloud you can also disable the 2 OneDrive tasks.

Search through the different tasks in this pane and see if there are any that you do not need to have enabled.

Task: {5CC0CF3A-06D7-4E03-A4CF-3340F57198A7} - System32\Tasks\CCleaner Update => C:\Program Files\CCleaner\CCUpdate.exe [714256 2024-04-10] (PIRIFORM SOFTWARE LIMITED -> Piriform Software Ltd)

Task: {44117050-07DC-49A2-B6DB-7128A8252302} - System32\Tasks\CCleanerCrashReporting => C:\Program Files\CCleaner\CCleanerBugReport.exe [5074848 2024-04-10] (PIRIFORM SOFTWARE LIMITED -> Gen Digital Inc. All rights reserved.) -> --product 90 --send dumps|report --path "C:\Program Files\CCleaner\LOG" --programpath "C:\Program Files\CCleaner" --guid "9dac4439-e6f9-4785-9ff9-123e643f51d6" --version "6.23.11010" --silent

Task: {A0EAF409-0596-4FA2-9F1A-1AF53A1AACD1} - System32\Tasks\CreateExplorerShellUnelevatedTask => C:\Windows\explorer.exe [5381288 2024-05-09] (Microsoft Windows -> Microsoft Corporation)

You might also Disable:

Task: {BF342BB0-ADA7-44F2-925B-A375009F6CEA} - System32\Tasks\Software Update Application => C:\ProgramData\OEM\UpgradeTool\ListCheck.exe [474368 2018-08-03] (Acer Incorporated -> Acer Incorporated)

as a test.

I see while looking at your tasks from your other post that you have this task enabled:

Task: {099FEBAC-23E3-4CC4-857A-BC3FBA3EFBD1} - System32\Tasks\Microsoft\Windows\Windows Defender\Windows Defender Scheduled Scan => C:\ProgramData\Microsoft\Windows Defender\Platform\4.18.24030.9-0\MpCmdRun.exe [1654168 2024-05-05] (Microsoft Windows Publisher -> Microsoft Corporation)

I can't tell when the scan is scheduled but a scan can slow things down a lot so I would try to disable it for now. Move to the left pane and click on the arrow in front of

Task Scheduler Library

then on the arrow in front of Microsoft then on the arrow (if any in front of Windows Defender. If no arrow click on Windows Defender. Windows Defender Scheduled Scan is what we are looking for. (I don't use Windows Defender so have no tasks here - I think I removed them manually). It may also be called: {099FEBAC-23E3-4CC4-857A-BC3FBA3EFBD1}.

Close Task Scheduler.

There may also be a Startup Entry that needs to be killed off. Right click on the clock and select Task Manager then click ont he Startup tab. If you don't see the tabs then click on More Details at the bottom.

Look for anything that mentions Edge and click on it and Disable. (and if you don't use One Drive also Disable the One Drive entry) Task Manager will also tell you if a Startup Entry has an impact on your boot time. Do you see any with High impact?

Reboot and repeat the Latency Monitor running while first trying to bring up Chrome test and post the Processes tab screenshot.

What is the model of your desktop? Do you know if you have the latest BIOS?

#48
Steviep

Posted 16 May 2024 - 03:43 PM

Member

Topic Starter
Member
420 posts

Hi,

I've uninstalled CCleaner and followed the instructions for Edge. In task scheduler I have disabled the two Edge tasks,and also the one dive tasks and windows defender. There was nothing that I could see in the start up tab as it only shows two enabled Mobile Devices- I'm not sure if I should disable that one as it says the impact in not measured and the windows security notification icon is enabled but says Low Impact.. I've attached the Processes screen print and the PC took 3:40 from start up to results from a google search and that was with the Latency Monitor running at the same time.

I've gone into the BIOS and says the version is R01-C3 and a google search says that for my model Aspire XC-885 this is the most up to date version

Attached Thumbnails

Edited by Steviep, 16 May 2024 - 04:12 PM.

#49
RKinner

Posted 17 May 2024 - 04:25 AM

Malware Expert

Expert
24,731 posts

Since it helped a bit to increase the Virtual Memory go back and change the 16G to 24G.

Let's remove some Windows spyware and known slowness causes and see if that helps.

Search for

task scheduler

When it finds it, right click and Run As Administrator

Click on the arrow in front of Task Scheduler Library then

Click on the arrow in front of Microsoft

Click on the arrow in front of Windows

Click on Application Experience. In the next pane to the right, right click on each Task and Delete. Should be three or four (later versions) tasks. (In Win 11 I think there is one task that won't let you delete it so don't worry about it)

Click on Customer Experience Improvement Program. In the next pane to the right, right click on each Task and Delete. Should be two tasks.

Close Task Scheduler.

Search for

services.msc

hit Enter

Find SysMain

Right click on it and select Properties. Change the Startup Type from Automatic to Disabled. OK

Download OOSU10.exe:

https://www.oo-softw...com/en/shutup10

Download and Save it (You will get a popup while it's downloading. You can X out of it)

then go to the Download folder and Right click on the downloaded file and Run As Admin.

Allow it to make a System Restore Point.

Click on Actions then on Apply Recommended Settings.

Close the program and reboot.

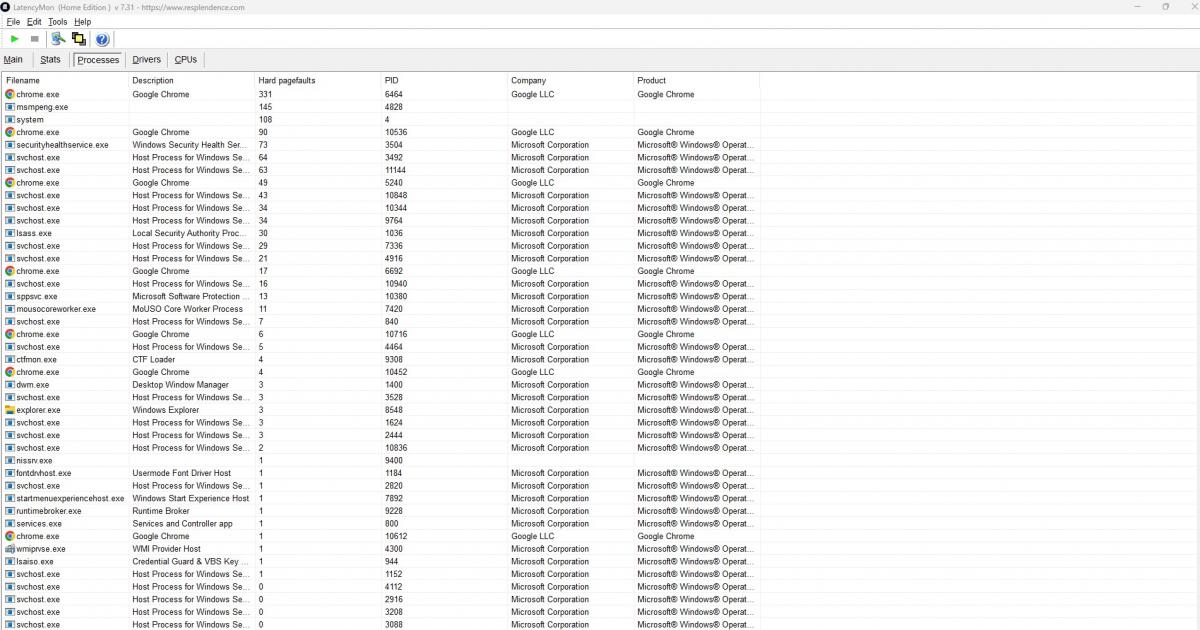

Rerun Latency Monitor and post the summary and a screenshot of the Processes tab.

Let's also run DxDiag

In the Search box type: dxdiag

wait for it to find it. Right click on dxdiag.exe and Run As Admin.

Yes

Once it finishes (green line in bottom left goes away)

Save All Information. Point it at your desktop and it should save it as dxdiag.txt.

Exit

Double click on dxdiag.txt and copy and paste the text into a reply.

Also in your other thread Avast was removed manually. See if AswClear finds any traces to remove:

https://www.avast.co...tall-utility#pc

You might also try searching for

msconfig

and hit Enter

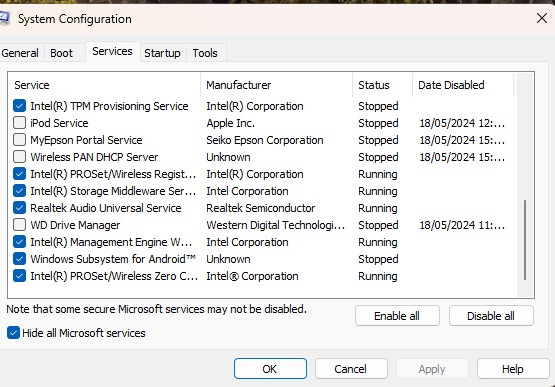

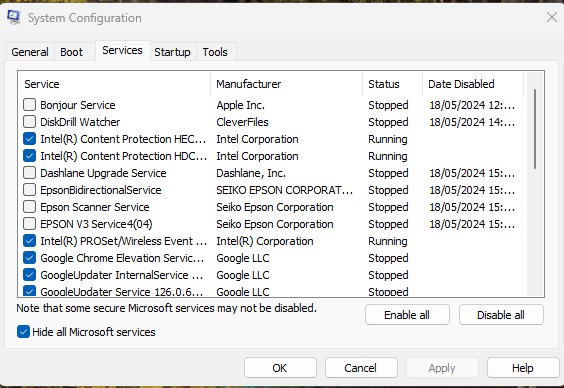

Click on the Services tab, Check the box to hide Microsoft services and then uncheck everything that remains. Apply and reboot. IF it makes a big difference then go back into msconfig and recheck about 1/2 of the things you unchecked. Try and isolate it to one or two services. If no big difference then recheck all.

#50
RKinner

Posted 17 May 2024 - 04:33 AM

Malware Expert

Expert
24,731 posts

PS. Just a warning. If the Avast site tells you to go into Safe Mode, make sure you know your Windows password, The PIN that some people use won't work.

#51
Steviep

Posted 17 May 2024 - 05:16 AM

Member

Topic Starter
Member
420 posts

Just working my way though your instructions, here is the Latency Report and I've attached the screenprint:

_________________________________________________________________________________________________________

CONCLUSION

_________________________________________________________________________________________________________

Your system appears to be suitable for handling real-time audio and other tasks without dropouts.

LatencyMon has been analyzing your system for 0:01:01 (h:mm:ss) on all processors.

_________________________________________________________________________________________________________

SYSTEM INFORMATION

_________________________________________________________________________________________________________

Computer name: DESKTOP-T3QOQ8M

OS version: Windows 11, 10.0, version 2009, build: 22631 (x64)

Hardware: Carlos, Acer

BIOS: R01-C3

CPU: GenuineIntel Intel® Core™ i5-8400 CPU @ 2.80GHz

Logical processors: 6

Processor groups: 1

Processor group size: 6

RAM: 8069 MB total

_________________________________________________________________________________________________________

CPU SPEED

_________________________________________________________________________________________________________

Reported CPU speed (WMI): 2808 MHz

Reported CPU speed (registry): 2808 MHz

Note: reported execution times may be calculated based on a fixed reported CPU speed. Disable variable speed settings like Intel Speed Step and AMD Cool N Quiet in the BIOS setup for more accurate results.

_________________________________________________________________________________________________________

MEASURED INTERRUPT TO USER PROCESS LATENCIES

_________________________________________________________________________________________________________

The interrupt to process latency reflects the measured interval that a usermode process needed to respond to a hardware request from the moment the interrupt service routine started execution. This includes the scheduling and execution of a DPC routine, the signaling of an event and the waking up of a usermode thread from an idle wait state in response to that event.

Highest measured interrupt to process latency (µs): 648.50

Average measured interrupt to process latency (µs): 8.126145

Highest measured interrupt to DPC latency (µs): 622.60

Average measured interrupt to DPC latency (µs): 2.737796

_________________________________________________________________________________________________________

REPORTED ISRs

_________________________________________________________________________________________________________

Interrupt service routines are routines installed by the OS and device drivers that execute in response to a hardware interrupt signal.

Highest ISR routine execution time (µs): 51.402066

Driver with highest ISR routine execution time: Wdf01000.sys - Kernel Mode Driver Framework Runtime, Microsoft Corporation

Highest reported total ISR routine time (%): 0.001825

Driver with highest ISR total time: HDAudBus.sys - High Definition Audio Bus Driver, Microsoft Corporation

Total time spent in ISRs (%) 0.002328

ISR count (execution time <250 µs): 1012

ISR count (execution time 250-500 µs): 0

ISR count (execution time 500-1000 µs): 0

ISR count (execution time 1000-2000 µs): 0

ISR count (execution time 2000-4000 µs): 0

ISR count (execution time >=4000 µs): 0

_________________________________________________________________________________________________________

REPORTED DPCs

_________________________________________________________________________________________________________

DPC routines are part of the interrupt servicing dispatch mechanism and disable the possibility for a process to utilize the CPU while it is interrupted until the DPC has finished execution.

Highest DPC routine execution time (µs): 388.823362

Driver with highest DPC routine execution time: dxgkrnl.sys - DirectX Graphics Kernel, Microsoft Corporation

Highest reported total DPC routine time (%): 0.024699

Driver with highest DPC total execution time: storport.sys - Microsoft Storage Port Driver, Microsoft Corporation

Total time spent in DPCs (%) 0.093193

DPC count (execution time <250 µs): 48314

DPC count (execution time 250-500 µs): 0

DPC count (execution time 500-10000 µs): 2

DPC count (execution time 1000-2000 µs): 0

DPC count (execution time 2000-4000 µs): 0

DPC count (execution time >=4000 µs): 0

_________________________________________________________________________________________________________

REPORTED HARD PAGEFAULTS

_________________________________________________________________________________________________________

Hard pagefaults are events that get triggered by making use of virtual memory that is not resident in RAM but backed by a memory mapped file on disk. The process of resolving the hard pagefault requires reading in the memory from disk while the process is interrupted and blocked from execution.

NOTE: some processes were hit by hard pagefaults. If these were programs producing audio, they are likely to interrupt the audio stream resulting in dropouts, clicks and pops. Check the Processes tab to see which programs were hit.

Process with highest pagefault count: chrome.exe

Total number of hard pagefaults 1436

Hard pagefault count of hardest hit process: 331

Number of processes hit: 39

_________________________________________________________________________________________________________

PER CPU DATA

_________________________________________________________________________________________________________

CPU 0 Interrupt cycle time (s): 0.810586

CPU 0 ISR highest execution time (µs): 51.402066

CPU 0 ISR total execution time (s): 0.008590

CPU 0 ISR count: 1012

CPU 0 DPC highest execution time (µs): 388.823362

CPU 0 DPC total execution time (s): 0.235648

CPU 0 DPC count: 35635

_________________________________________________________________________________________________________

CPU 1 Interrupt cycle time (s): 0.369507

CPU 1 ISR highest execution time (µs): 0.0

CPU 1 ISR total execution time (s): 0.0

CPU 1 ISR count: 0

CPU 1 DPC highest execution time (µs): 174.191952

CPU 1 DPC total execution time (s): 0.030629

CPU 1 DPC count: 4255

_________________________________________________________________________________________________________

CPU 2 Interrupt cycle time (s): 0.229753

CPU 2 ISR highest execution time (µs): 0.0

CPU 2 ISR total execution time (s): 0.0

CPU 2 ISR count: 0

CPU 2 DPC highest execution time (µs): 81.833333

CPU 2 DPC total execution time (s): 0.015763

CPU 2 DPC count: 1873

_________________________________________________________________________________________________________

CPU 3 Interrupt cycle time (s): 0.228915

CPU 3 ISR highest execution time (µs): 0.0

CPU 3 ISR total execution time (s): 0.0

CPU 3 ISR count: 0

CPU 3 DPC highest execution time (µs): 96.821937

CPU 3 DPC total execution time (s): 0.017998

CPU 3 DPC count: 2037

_________________________________________________________________________________________________________

CPU 4 Interrupt cycle time (s): 0.211994

CPU 4 ISR highest execution time (µs): 0.0

CPU 4 ISR total execution time (s): 0.0

CPU 4 ISR count: 0

CPU 4 DPC highest execution time (µs): 100.034544

CPU 4 DPC total execution time (s): 0.018511

CPU 4 DPC count: 2020

_________________________________________________________________________________________________________

CPU 5 Interrupt cycle time (s): 0.228713

CPU 5 ISR highest execution time (µs): 0.0

CPU 5 ISR total execution time (s): 0.0

CPU 5 ISR count: 0

CPU 5 DPC highest execution time (µs): 108.366097

CPU 5 DPC total execution time (s): 0.025334

CPU 5 DPC count: 2496

_________________________________________________________________________________________________________

------------------

System Information

------------------

Time of this report: 5/17/2024, 12:17:46

Machine name: DESKTOP-T3QOQ8M

Machine Id: {0A4B6D90-04E9-4CAD-994A-FDC9B2CB1EFF}

Operating System: Windows 11 Home 64-bit (10.0, Build 22631) (22621.ni_release.220506-1250)

Language: English (Regional Setting: English)

System Manufacturer: Acer

System Model: Carlos

BIOS: R01-C3 (type: UEFI)

Processor: Intel® Core™ i5-8400 CPU @ 2.80GHz (6 CPUs), ~2.8GHz

Memory: 8192MB RAM

Available OS Memory: 8070MB RAM

Page File: 4017MB used, 28052MB available

Windows Dir: C:\WINDOWS

DirectX Version: DirectX 12

DX Setup Parameters: Not found

User DPI Setting: 96 DPI (100 percent)

System DPI Setting: 96 DPI (100 percent)

DWM DPI Scaling: Disabled

Miracast: Available, with HDCP

Microsoft Graphics Hybrid: Not Supported

DirectX Database Version: 1.5.4

DxDiag Version: 10.00.22621.3527 64bit Unicode

------------

DxDiag Notes

------------

Display Tab 1: No problems found.

Display Tab 2: No problems found.

Sound Tab 1: No problems found.

Sound Tab 2: No problems found.

Sound Tab 3: No problems found.

Input Tab: No problems found.

--------------------

DirectX Debug Levels

--------------------

Direct3D: 0/4 (retail)

DirectDraw: 0/4 (retail)

DirectInput: 0/5 (retail)

DirectMusic: 0/5 (retail)

DirectPlay: 0/9 (retail)

DirectSound: 0/5 (retail)

DirectShow: 0/6 (retail)

---------------

Display Devices

---------------

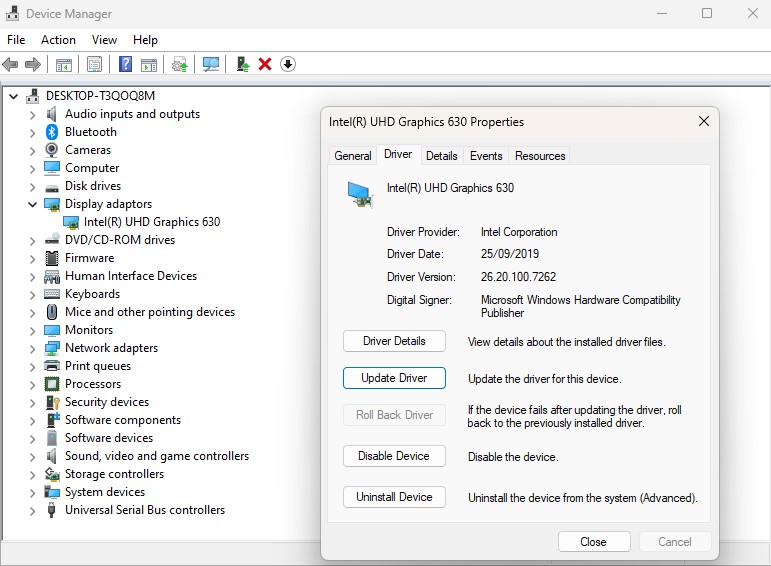

Card name: Intel® UHD Graphics 630

Manufacturer: Intel Corporation

Chip type: Intel® UHD Graphics Family

DAC type: Internal

Device Type: Full Device (POST)

Device Key: Enum\PCI\VEN_8086&DEV_3E92&SUBSYS_12381025&REV_00

Device Status: 0180200A [DN_DRIVER_LOADED|DN_STARTED|DN_DISABLEABLE|DN_NT_ENUMERATOR|DN_NT_DRIVER]

Device Problem Code: No Problem

Driver Problem Code: Unknown

Display Memory: 4162 MB

Dedicated Memory: 128 MB

Shared Memory: 4034 MB

Current Mode: 1920 x 1080 (32 bit) (59Hz)

HDR Support: Not Supported

Display Topology: Extend

Display Color Space: DXGI_COLOR_SPACE_RGB_FULL_G22_NONE_P709

Color Primaries: Red(0.644531,0.336914), Green(0.311523,0.625000), Blue(0.153320,0.051758), White Point(0.313477,0.329102)

Display Luminance: Min Luminance = 0.500000, Max Luminance = 270.000000, MaxFullFrameLuminance = 270.000000

Monitor Name: Generic PnP Monitor

Monitor Model: EK220Q

Monitor Id: ACR0757

Native Mode: 1920 x 1080(p) (60.000Hz)

Output Type: HDMI

Monitor Capabilities: HDR Not Supported

Display Pixel Format: DISPLAYCONFIG_PIXELFORMAT_32BPP

Advanced Color: Not Supported

Driver Name: C:\WINDOWS\System32\DriverStore\FileRepository\igdlh64.inf_amd64_3156b3035fd88b4d\igdumdim64.dll,C:\WINDOWS\System32\DriverStore\FileRepository\igdlh64.inf_amd64_3156b3035fd88b4d\igd10iumd64.dll,C:\WINDOWS\System32\DriverStore\FileRepository\igdlh64.inf_amd64_3156b3035fd88b4d\igd10iumd64.dll,C:\WINDOWS\System32\DriverStore\FileRepository\igdlh64.inf_amd64_3156b3035fd88b4d\igd12umd64.dll

Driver File Version: 23.20.0016.4973 (English)

Driver Version: 23.20.16.4973

DDI Version: 12

Feature Levels: 12_1,12_0,11_1,11_0,10_1,10_0,9_3,9_2,9_1

Driver Model: WDDM 2.3

Hardware Scheduling: DriverSupportState:AlwaysOff Enabled:False

Displayable: Not Supported

Graphics Preemption: Triangle

Compute Preemption: Thread

Miracast: Supported

Detachable GPU: No

Hybrid Graphics GPU: Integrated

Power P-states: Not Supported

Virtualization: Not Supported

Block List: DISABLE_HWSCH

Catalog Attributes: Universal:N/A Declarative:N/A

Driver Attributes: Final Retail

Driver Date/Size: 28/02/2018 01:00:00, 1930440 bytes

WHQL Logo'd: Yes

WHQL Date Stamp: Unknown

Device Identifier: {D7B78E66-7DD2-11CF-F860-2832BBC2DA35}

Vendor ID: 0x8086

Device ID: 0x3E92

SubSys ID: 0x12381025

Revision ID: 0x0000

Driver Strong Name: oem13.inf:5f63e5340f714335:iCFL_w10_DS:23.20.16.4973:pci\ven_8086&dev_3e92&subsys_12381025

Rank Of Driver: 00D10001

Video Accel: ModeMPEG2_A ModeMPEG2_C ModeWMV9_C ModeVC1_C

DXVA2 Modes: DXVA2_ModeMPEG2_VLD DXVA2_ModeMPEG2_IDCT DXVA2_ModeVC1_D2010 {E07EC519-E651-4CD6-AC84-1370CCEEC851} {BCC5DB6D-A2B6-4AF0-ACE4-ADB1F787BC89} DXVA2_ModeWMV9_IDCT DXVA2_ModeVC1_IDCT DXVA2_ModeH264_VLD_NoFGT DXVA2_ModeH264_VLD_Stereo_Progressive_NoFGT DXVA2_ModeH264_VLD_Stereo_NoFGT DXVA2_ModeH264_VLD_Multiview_NoFGT {C528916C-C0AF-4645-8CB2-372B6D4ADC2A} {91CD2D6E-897B-4FA1-B0D7-51DC88010E0A} DXVA2_ModeVP8_VLD {442B942A-B4D9-4940-BC45-A882E5F919F3} {97688186-56A8-4094-B543-FC9DAAA49F4B} {1424D4DC-7CF5-4BB1-9CD7-B63717A72A6B} {C346E8A3-CBED-4D27-87CC-A70EB4DC8C27} {FFC79924-5EAF-4666-A736-06190F281443} {F416F7BD-098A-4CF1-A11B-CE54959CA03D} {BF44DACD-217F-4370-A383-D573BC56707E} {2364D06A-F67F-4186-AED0-62B99E1784F1} {464BDB3C-91C4-4E9B-896F-225496AC4ED6} {28566328-F041-4466-8B14-8F5831E78F8B} {6B4A94DB-54FE-4AE1-9BE4-7A7DAD004600} {8C56EB1E-2B47-466F-8D33-7DBCD63F3DF2} DXVA2_ModeHEVC_VLD_Main {75FC75F7-C589-4A07-A25B-72E03B0383B3} DXVA2_ModeHEVC_VLD_Main10 {07CFAFFB-5A2E-4B99-B62A-E4CA53B6D5AA} DXVA2_ModeVP9_VLD_Profile0 DXVA2_ModeVP9_VLD_10bit_Profile2 {76988A52-DF13-419A-8E64-FFCF4A336CF5} {80A3A7BD-89D8-4497-A2B8-2126AF7E6EB8} {8DE911C4-C898-4364-9715-1DE6B3FE773D} {50925B7B-E931-4978-A12A-586630F095F9} {49761BEC-4B63-4349-A5FF-87FFDF088466}

Deinterlace Caps: {BF752EF6-8CC4-457A-BE1B-08BD1CAEEE9F}: Format(In/Out)=(YUY2,YUY2) Frames(Prev/Fwd/Back)=(0,0,1) Caps=VideoProcess_YUV2RGB VideoProcess_StretchX VideoProcess_StretchY VideoProcess_AlphaBlend DeinterlaceTech_EdgeFiltering

{335AA36E-7884-43A4-9C91-7F87FAF3E37E}: Format(In/Out)=(YUY2,YUY2) Frames(Prev/Fwd/Back)=(0,0,0) Caps=VideoProcess_YUV2RGB VideoProcess_StretchX VideoProcess_StretchY VideoProcess_AlphaBlend DeinterlaceTech_BOBVerticalStretch

{5A54A0C9-C7EC-4BD9-8EDE-F3C75DC4393B}: Format(In/Out)=(YUY2,YUY2) Frames(Prev/Fwd/Back)=(0,0,0) Caps=VideoProcess_YUV2RGB VideoProcess_StretchX VideoProcess_StretchY VideoProcess_AlphaBlend

{BF752EF6-8CC4-457A-BE1B-08BD1CAEEE9F}: Format(In/Out)=(UYVY,YUY2) Frames(Prev/Fwd/Back)=(0,0,1) Caps=VideoProcess_YUV2RGB VideoProcess_StretchX VideoProcess_StretchY VideoProcess_AlphaBlend DeinterlaceTech_EdgeFiltering

{335AA36E-7884-43A4-9C91-7F87FAF3E37E}: Format(In/Out)=(UYVY,YUY2) Frames(Prev/Fwd/Back)=(0,0,0) Caps=VideoProcess_YUV2RGB VideoProcess_StretchX VideoProcess_StretchY VideoProcess_AlphaBlend DeinterlaceTech_BOBVerticalStretch

{5A54A0C9-C7EC-4BD9-8EDE-F3C75DC4393B}: Format(In/Out)=(UYVY,YUY2) Frames(Prev/Fwd/Back)=(0,0,0) Caps=VideoProcess_YUV2RGB VideoProcess_StretchX VideoProcess_StretchY VideoProcess_AlphaBlend

{BF752EF6-8CC4-457A-BE1B-08BD1CAEEE9F}: Format(In/Out)=(YV12,YUY2) Frames(Prev/Fwd/Back)=(0,0,1) Caps=VideoProcess_YUV2RGB VideoProcess_StretchX VideoProcess_StretchY VideoProcess_AlphaBlend DeinterlaceTech_EdgeFiltering

{335AA36E-7884-43A4-9C91-7F87FAF3E37E}: Format(In/Out)=(YV12,YUY2) Frames(Prev/Fwd/Back)=(0,0,0) Caps=VideoProcess_YUV2RGB VideoProcess_StretchX VideoProcess_StretchY VideoProcess_AlphaBlend DeinterlaceTech_BOBVerticalStretch

{5A54A0C9-C7EC-4BD9-8EDE-F3C75DC4393B}: Format(In/Out)=(YV12,YUY2) Frames(Prev/Fwd/Back)=(0,0,0) Caps=VideoProcess_YUV2RGB VideoProcess_StretchX VideoProcess_StretchY VideoProcess_AlphaBlend

{BF752EF6-8CC4-457A-BE1B-08BD1CAEEE9F}: Format(In/Out)=(NV12,YUY2) Frames(Prev/Fwd/Back)=(0,0,1) Caps=VideoProcess_YUV2RGB VideoProcess_StretchX VideoProcess_StretchY VideoProcess_AlphaBlend DeinterlaceTech_EdgeFiltering

{335AA36E-7884-43A4-9C91-7F87FAF3E37E}: Format(In/Out)=(NV12,YUY2) Frames(Prev/Fwd/Back)=(0,0,0) Caps=VideoProcess_YUV2RGB VideoProcess_StretchX VideoProcess_StretchY VideoProcess_AlphaBlend DeinterlaceTech_BOBVerticalStretch

{5A54A0C9-C7EC-4BD9-8EDE-F3C75DC4393B}: Format(In/Out)=(NV12,YUY2) Frames(Prev/Fwd/Back)=(0,0,0) Caps=VideoProcess_YUV2RGB VideoProcess_StretchX VideoProcess_StretchY VideoProcess_AlphaBlend

{BF752EF6-8CC4-457A-BE1B-08BD1CAEEE9F}: Format(In/Out)=(IMC1,YUY2) Frames(Prev/Fwd/Back)=(0,0,1) Caps=VideoProcess_YUV2RGB VideoProcess_StretchX VideoProcess_StretchY VideoProcess_AlphaBlend DeinterlaceTech_EdgeFiltering

{335AA36E-7884-43A4-9C91-7F87FAF3E37E}: Format(In/Out)=(IMC1,YUY2) Frames(Prev/Fwd/Back)=(0,0,0) Caps=VideoProcess_YUV2RGB VideoProcess_StretchX VideoProcess_StretchY VideoProcess_AlphaBlend DeinterlaceTech_BOBVerticalStretch

{5A54A0C9-C7EC-4BD9-8EDE-F3C75DC4393B}: Format(In/Out)=(IMC1,YUY2) Frames(Prev/Fwd/Back)=(0,0,0) Caps=VideoProcess_YUV2RGB VideoProcess_StretchX VideoProcess_StretchY VideoProcess_AlphaBlend

{BF752EF6-8CC4-457A-BE1B-08BD1CAEEE9F}: Format(In/Out)=(IMC2,YUY2) Frames(Prev/Fwd/Back)=(0,0,1) Caps=VideoProcess_YUV2RGB VideoProcess_StretchX VideoProcess_StretchY VideoProcess_AlphaBlend DeinterlaceTech_EdgeFiltering

{335AA36E-7884-43A4-9C91-7F87FAF3E37E}: Format(In/Out)=(IMC2,YUY2) Frames(Prev/Fwd/Back)=(0,0,0) Caps=VideoProcess_YUV2RGB VideoProcess_StretchX VideoProcess_StretchY VideoProcess_AlphaBlend DeinterlaceTech_BOBVerticalStretch

{5A54A0C9-C7EC-4BD9-8EDE-F3C75DC4393B}: Format(In/Out)=(IMC2,YUY2) Frames(Prev/Fwd/Back)=(0,0,0) Caps=VideoProcess_YUV2RGB VideoProcess_StretchX VideoProcess_StretchY VideoProcess_AlphaBlend

{BF752EF6-8CC4-457A-BE1B-08BD1CAEEE9F}: Format(In/Out)=(IMC3,YUY2) Frames(Prev/Fwd/Back)=(0,0,1) Caps=VideoProcess_YUV2RGB VideoProcess_StretchX VideoProcess_StretchY VideoProcess_AlphaBlend DeinterlaceTech_EdgeFiltering

{335AA36E-7884-43A4-9C91-7F87FAF3E37E}: Format(In/Out)=(IMC3,YUY2) Frames(Prev/Fwd/Back)=(0,0,0) Caps=VideoProcess_YUV2RGB VideoProcess_StretchX VideoProcess_StretchY VideoProcess_AlphaBlend DeinterlaceTech_BOBVerticalStretch

{5A54A0C9-C7EC-4BD9-8EDE-F3C75DC4393B}: Format(In/Out)=(IMC3,YUY2) Frames(Prev/Fwd/Back)=(0,0,0) Caps=VideoProcess_YUV2RGB VideoProcess_StretchX VideoProcess_StretchY VideoProcess_AlphaBlend

{BF752EF6-8CC4-457A-BE1B-08BD1CAEEE9F}: Format(In/Out)=(IMC4,YUY2) Frames(Prev/Fwd/Back)=(0,0,1) Caps=VideoProcess_YUV2RGB VideoProcess_StretchX VideoProcess_StretchY VideoProcess_AlphaBlend DeinterlaceTech_EdgeFiltering

{335AA36E-7884-43A4-9C91-7F87FAF3E37E}: Format(In/Out)=(IMC4,YUY2) Frames(Prev/Fwd/Back)=(0,0,0) Caps=VideoProcess_YUV2RGB VideoProcess_StretchX VideoProcess_StretchY VideoProcess_AlphaBlend DeinterlaceTech_BOBVerticalStretch

{5A54A0C9-C7EC-4BD9-8EDE-F3C75DC4393B}: Format(In/Out)=(IMC4,YUY2) Frames(Prev/Fwd/Back)=(0,0,0) Caps=VideoProcess_YUV2RGB VideoProcess_StretchX VideoProcess_StretchY VideoProcess_AlphaBlend

D3D9 Overlay: Supported

DXVA-HD: Supported

DDraw Status: Enabled

D3D Status: Enabled

AGP Status: Enabled

MPO MaxPlanes: 3

MPO Caps: RGB,YUV,BILINEAR,HIGH_FILTER,STRETCH_YUV,STRETCH_RGB,IMMEDIATE,HDR (MPO3)

MPO Stretch: 5.000X - 0.334X

MPO Media Hints: colorspace Conversion

MPO Formats: NV12,YUY2,R16G16B16A16_FLOAT,R10G10B10A2_UNORM,R8G8B8A8_UNORM,B8G8R8A8_UNORM

PanelFitter Caps: RGB,YUV,BILINEAR,HIGH_FILTER,STRETCH_YUV,STRETCH_RGB,IMMEDIATE,HDR (MPO3)

PanelFitter Stretch: 5.000X - 0.334X

Card name: Intel® UHD Graphics 630

Manufacturer: Intel Corporation

Chip type: Intel® UHD Graphics Family

DAC type: Internal

Device Type: Full Device (POST)

Device Key: Enum\PCI\VEN_8086&DEV_3E92&SUBSYS_12381025&REV_00

Device Status: 0180200A [DN_DRIVER_LOADED|DN_STARTED|DN_DISABLEABLE|DN_NT_ENUMERATOR|DN_NT_DRIVER]

Device Problem Code: No Problem

Driver Problem Code: Unknown

Display Memory: 4162 MB

Dedicated Memory: 128 MB

Shared Memory: 4034 MB

Current Mode: 1920 x 1080 (32 bit) (60Hz)
